Your First NIM on a DGX Spark — What 24.8 Tokens Per Second Doesn't Tell You

The first “does it work” test on any new inference stack is almost always a trivial prompt — something you can eyeball the answer to in a second. On a DGX Spark, with NVIDIA’s brand-new Spark-specific Llama 3.1 8B NIM, my first prompt was the same one I used a week earlier against Ollama serving a 123B Nemotron: write a Python one-liner that returns the nth Fibonacci number. The NIM answered in 8.9 seconds at 24.8 tokens per second — about three times faster than the Nemotron. It also returned a “one-liner” that was not a one-liner, and on a second pass at temperature=0 emitted invalid Python that would TypeError on the first call.

Both facts are the article. The Spark-specific NIM container is the easiest on-device inference endpoint I’ve stood up — 108 seconds from docker run to a responsive OpenAI-compatible API, weights cached on a writable volume you control, no cloud hop, no bill. At 8 billion parameters quantized to FP8, the model is fast enough to feel instant and confident enough to be wrong about things it should not be wrong about. If you’re evaluating this stack as a drop-in local replacement for a cloud LLM, both numbers matter. This is also the foundation piece for three applications I’ll build on this machine over the next few months — a Second Brain that RAGs over my own corpus, an LLM Wiki that compiles a markdown knowledge base at ingest time rather than answering queries live, and an Autoresearch agent that runs overnight training experiments unsupervised. All three start with one inference endpoint. This is that endpoint, honestly assessed.

Why this matters for a personal AI builder

Three concerns collapse into one question the moment you put inference on a Spark: privacy, independence, and latency-of-iteration. A cloud API answers in 200 ms if you’re lucky, 2.5 s if you’re not, bills per token, and routes every request through a machine that can log, cache, or use your prompts as training signal. A local NIM answers in milliseconds-to-seconds, costs zero marginal dollars per call, and never leaves the box. For the kind of personal-corpus work I want to do on this machine — feeding it my own notes, my own code, my own chat logs — the economics flip. The model comes to the data, not the other way around.

The DGX Spark’s 128 GB of unified memory makes this a flatter tradeoff than any single-GPU cloud tier I could rent. An 8B-FP8 model occupies roughly 10 GB of that budget; a 70B-class model still fits comfortably; an 8B driver plus a 70B critic can load simultaneously for agent loops without OOM. Small-model-cheap and big-model-cheap are both easy to rent; both-at-once-cheap is where the cloud bill climbs. On this one machine, it doesn’t climb at all. That’s the quiet thing the Spark enables, and it starts here — with one inference endpoint you’ll reuse for everything downstream.

Where this sits in the stack

NIM is not a new inference engine. It’s NVIDIA’s packaging layer around existing engines — in the Spark variant I pulled, the engine is vLLM, compiled against FP8 weights, running single-GPU (tp=1, pp=1) on the Grace-Blackwell GB10 chip. What NIM adds is the opinionated bundle: weights, tokenizer, prompt templates, health and readiness probes, an OpenAI-compatible HTTP server on port 8000, and — in the Spark-specific build — a JupyterLab plus TensorBoard workbench bundled alongside the inference endpoint. The image is 9.4 GB compressed; cached weights land in a host volume you mount, roughly 8.5 GB for this model at this precision. The net effect: one docker run command places a production-looking inference service on your desk, speaking the same API your cloud clients already know.

That endpoint is the thing. Once it’s pinned, the rest of the three-app arc is plumbing around it.

The journey

Preflight

Before any docker pull, a quick inventory of what the machine already had surfaced one blocker and two nice-to-haves:

$ docker --version
Docker version 29.2.1
$ docker info | grep Runtimes
 Runtimes: io.containerd.runc.v2 nvidia runc
$ nvidia-smi --query-gpu=name,driver_version --format=csv,noheader
NVIDIA GB10, 580.142
$ df -h ~ | tail -1
/dev/nvme0n1p2  3.7T  154G  3.4T   5% /
$ ss -tlnp | grep -E ':(8000|8080|11434)\b'
LISTEN 0 4096 *:8080   users:(("openshell",...))
LISTEN 0 4096 *:11434  users:(("ollama",...))

Docker is recent; the nvidia runtime is registered. Port 8000 is unclaimed — NIM’s default. Port 8080 is held by a NemoClaw sandbox from a prior article; port 11434 by Ollama serving a 123B Nemotron I’ll benchmark against. Disk has three terabytes free; a 10 GB pull is a rounding error. The blocker was credentials: NGC requires an API key to pull anything from nvcr.io, and I had none — no ~/.ngc/, no environment variable, no docker login entry for that registry. Fifteen minutes at build.nvidia.com, a new personal key, one docker login nvcr.io, and the blocker dissolved.

One Spark-specific surprise showed up on the nvidia-smi line and foreshadows a later gotcha: nvidia-smi --query-gpu=memory.total,memory.used --format=csv returns [N/A] on GB10. Unified memory on Grace-Blackwell is OS-managed rather than driver-reported, so NVIDIA’s canonical GPU-memory query returns nothing useful. I noted it and kept going; we’ll see it bite again during verification.

Finding the right image

This is article #3, so the right question is: which image? Several Llama 3.1 8B NIM variants live in the NGC catalog, and on an aarch64 machine the wrong one either fails to pull (no arm64 manifest) or pulls something that runs but wasn’t tuned for Spark’s FP8 path. The right answer is the one NVIDIA publishes at a dedicated namespace:

nvcr.io/nim/meta/llama-3.1-8b-instruct-dgx-spark:latest

The -dgx-spark suffix matters. This is a separate build recipe from the generic llama-3.1-8b-instruct NIM — different engine tuning, different default NIM_GPU_MEM_FRACTION, different bundled services. When a new NIM shows up in NVIDIA’s catalog and you want to know whether it’s meant for your Spark, that suffix is the first thing to check. The NGC catalog page confirms the shape of this build before you pull:

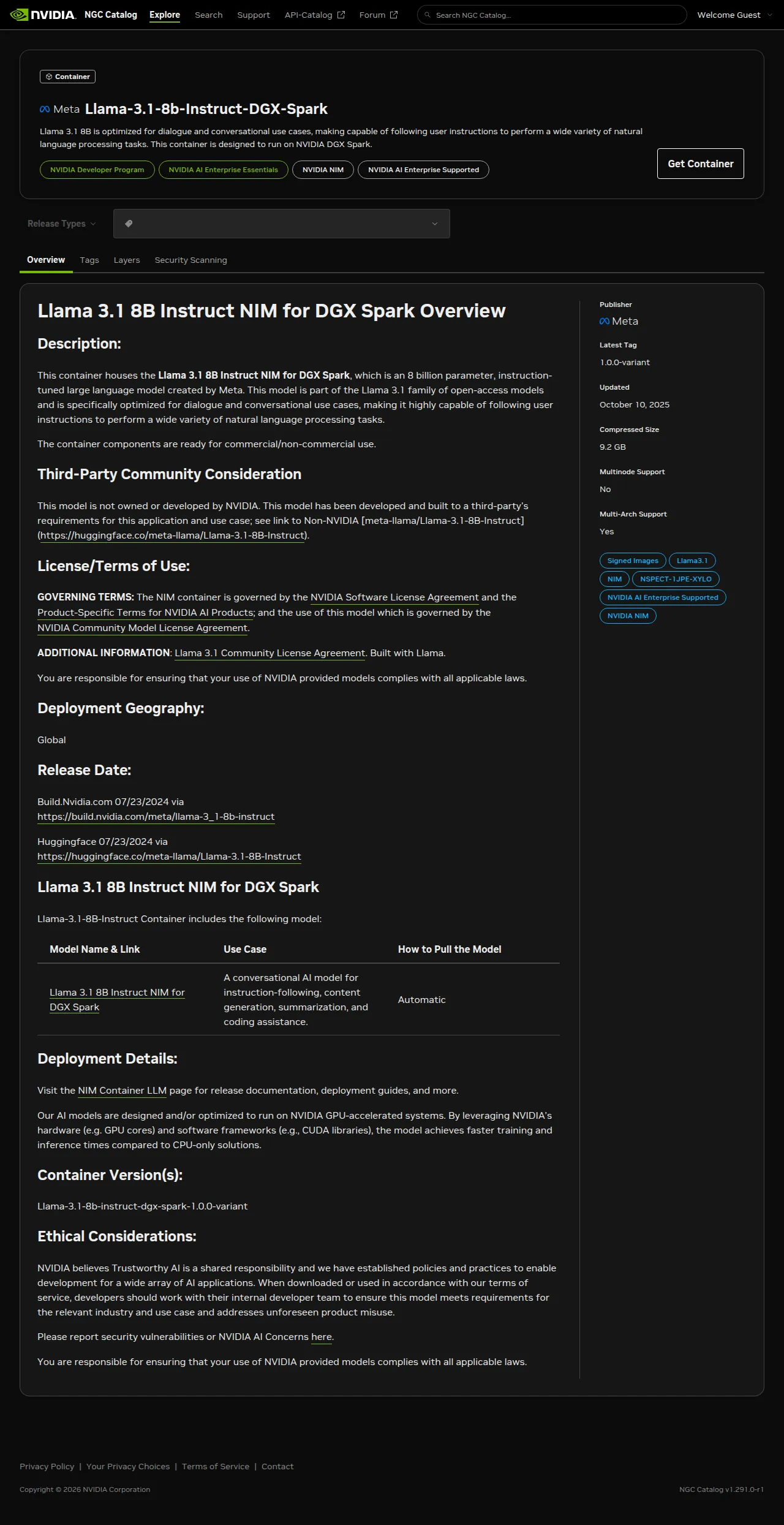

The listing makes it explicit: this is a Spark-specific build, not an aarch64 translation of a generic NIM. A Llama 3.1 8B NIM under the generic path in the same meta org may run on a different device entirely and may not fit the Spark’s FP8 path at all.

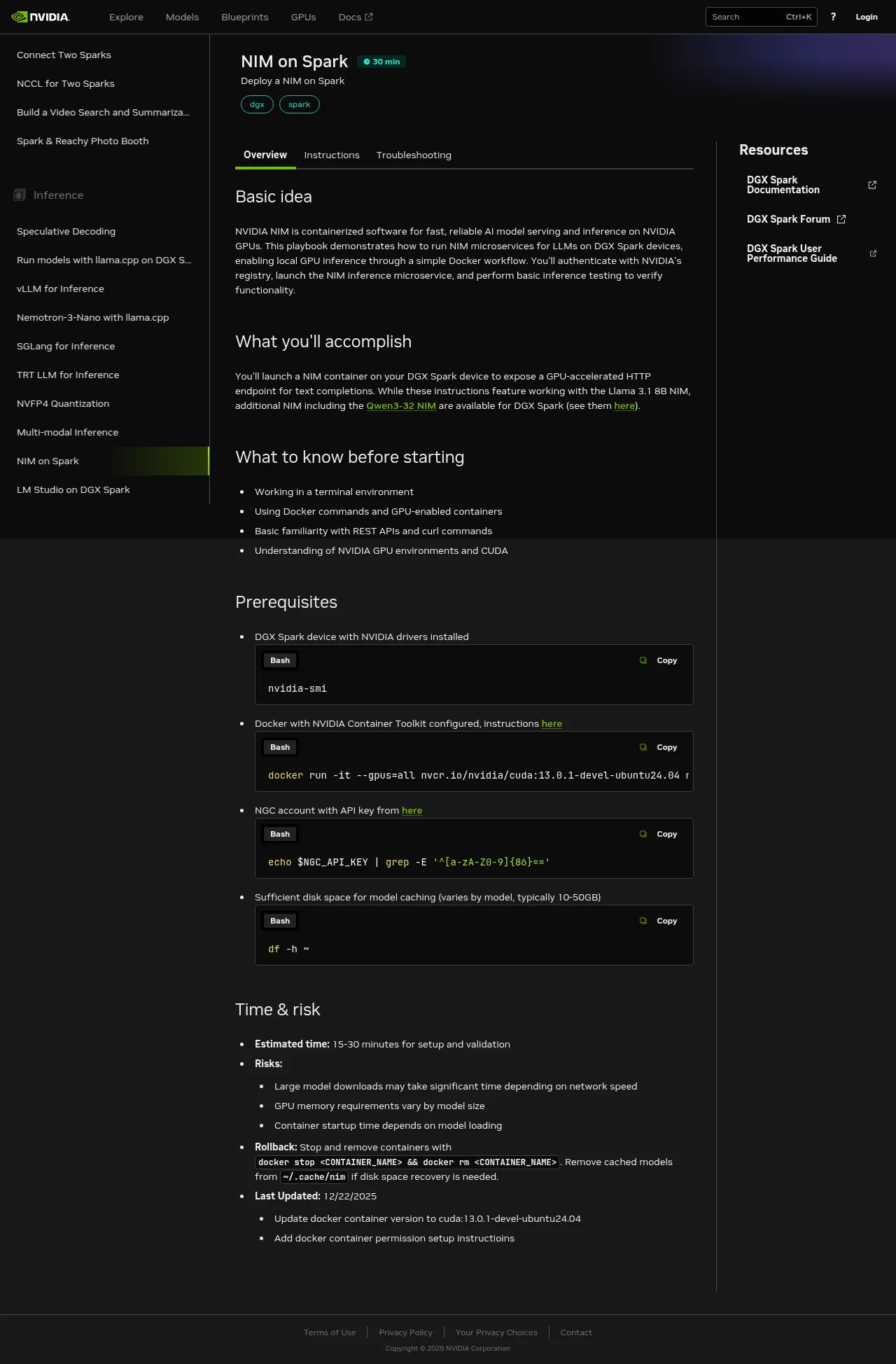

The more useful page is the playbook at build.nvidia.com/spark/nim-llm, which walks the install end-to-end and makes the distinction between host port and the container’s NIM_HTTP_API_PORT explicit:

“NIM on Spark” is one of ten Spark-specific inference playbooks NVIDIA ships; the left rail shows the others — vLLM, SGLang, TRT-LLM, NVFP4 quantization, LM Studio, llama.cpp, Nemotron-3-Nano, multi-modal, and speculative decoding. Each gets its own essay eventually; NIM is the highest-leverage starting point because it bundles the engine choice with the weights.

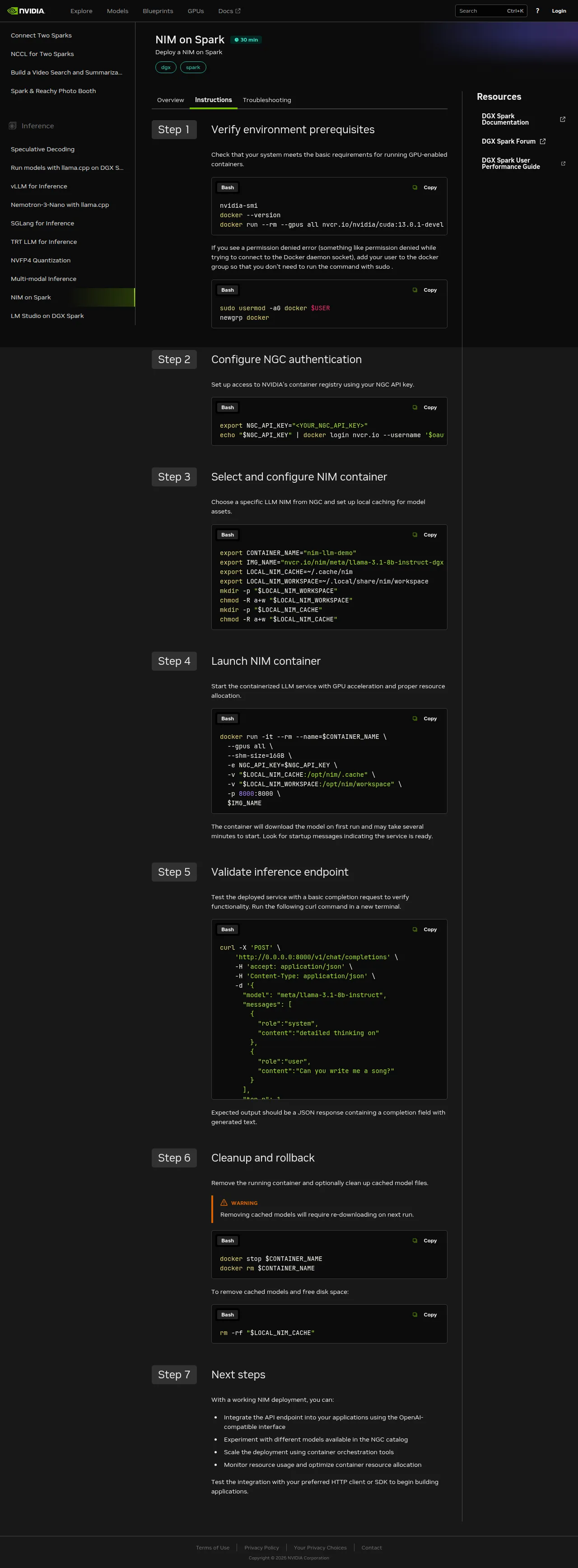

Seven steps to a working endpoint. The bulk of wall-clock time is step 4 — the first-run model-weight fetch — and step 5, where you actually exercise the endpoint.

First run — 205 seconds

With credentials in place, the launch command is short:

docker run -d \
  --name nim-llama31-8b \
  --gpus all \
  --shm-size=16g \
  --env-file ~/.nim/secrets.env \
  -v ~/.nim/cache/llama-3.1-8b-instruct:/opt/nim/.cache \
  -p 8000:8000 \
  nvcr.io/nim/meta/llama-3.1-8b-instruct-dgx-spark:latest

Two pieces of that command do load-bearing work. The bind-mount at -v ~/.nim/cache/llama-3.1-8b-instruct:/opt/nim/.cache keeps model weights outside the container — without it, the 9 GB model pull lives inside the container’s overlayfs and dies when you docker rm. Restart would become re-download, and restart is the thing you’ll do most often. The --env-file ~/.nim/secrets.env hands the NGC key to the container at runtime so it can fetch weights from NVIDIA’s model registry on the first run; a prior docker login alone isn’t enough, because the container itself calls api.ngc.nvidia.com with its own credentials rather than the daemon’s.

From docker run to the first 200 on /v1/models: 205 seconds. That’s cold-start with an empty cache on a 1 Gbps link. About 95 seconds of it was the weight download (confirmed via cache-directory growth — 5.9 GB at t+55 s, 8.5 GB at t+115 s). The remaining ~110 seconds was safetensor-shard loading into vLLM plus CUDA-graph compilation. The log tells the story precisely:

INFO 2026-04-22 18:56:49.541 profiles.py:345 Matched profile:
  feat_lora=false, gpu_device=2e12:10de, llm_engine=vllm,
  precision=fp8, pp=1, tp=1
  profile_id: bfb2c8a2d4dceba7d2629c856113eb12f5ce60d6de4e10369b4b334242229cfa
...
INFO Loading safetensors checkpoint shards: 4/4 complete
INFO Compiling a graph for dynamic shape takes 5.87 s
  (...repeated for several shapes)
INFO Uvicorn running on http://0.0.0.0:8000

Two facts from those logs are worth naming. First: vLLM, not TensorRT-LLM. NIM is a packaging layer; the actual engine depends on the profile the container matched against the hardware it found. On GB10, with FP8 weights available, the Spark variant lands on vLLM’s FP8 path rather than TRT-LLM. Second: FP8 precision, confirmed via the profile tag. That’s what keeps an 8B model comfortably fast on a single Spark — lower precision means lower memory bandwidth per forward pass and larger batches for the same KV-cache budget.

Restart — 108 seconds

I killed the container and restarted it without removing the cache volume:

docker stop nim-llama31-8b && docker rm nim-llama31-8b
start=$(date +%s)
docker run -d \
  --name nim-llama31-8b --gpus all --shm-size=16g \
  --env-file ~/.nim/secrets.env \
  -v ~/.nim/cache/llama-3.1-8b-instruct:/opt/nim/.cache \
  -p 8000:8000 \
  nvcr.io/nim/meta/llama-3.1-8b-instruct-dgx-spark:latest
until curl -sf http://localhost:8000/v1/models >/dev/null; do sleep 5; done
echo "warm-cache cold-start: $(( $(date +%s) - start ))s"
# warm-cache cold-start: 110s

108 seconds on average across two restarts (110 s and 106 s). The weight-download phase drops to zero — vLLM reads cached safetensor shards directly from disk — but the shard-load-plus-CUDA-graph-compile sequence still runs every time. This is the number that matters for daily life, not the install-day one. If the number matters to your architecture (an autoscaler deciding whether to keep the NIM resident, an agent loop deciding when to wake a sleeping endpoint), 108 seconds is what you plan around, not 205.

Inference — 24.8 tokens per second, steadily

With the endpoint responsive, the benchmark is four non-streaming chat completions with an identical prompt — the same one I used against Ollama-Nemotron a week earlier, for an apples-to-apples on-device comparison:

PROMPT='Write a Python one-liner that returns the nth Fibonacci number.'
for i in 1 2 3 4; do
  curl -s -X POST http://localhost:8000/v1/chat/completions \
    -H 'Content-Type: application/json' \
    -d "{\"model\":\"meta/llama-3.1-8b-instruct\",
         \"messages\":[{\"role\":\"user\",\"content\":\"$PROMPT\"}],
         \"max_tokens\":512,\"temperature\":0.7}"
done

Wall-clock timed by date +%s%N around each curl:

Round	Wall-clock	Completion tokens	tok/s
1	10.22 s	253	24.89
2	6.66 s	165	24.90
3	8.88 s	219	24.72
4	8.86 s	219	24.84

Mean: 24.84 tokens per second. Steady enough that I double-checked the container wasn’t returning cached responses — it wasn’t; every prompt re-enters vLLM’s generation loop. Variance across rounds is entirely output-length variance; throughput per token is within 0.2 tok/s across runs.

One streaming round confirmed what this stack actually feels like from a client’s perspective:

curl -s -N -X POST http://localhost:8000/v1/chat/completions \
  -H 'Content-Type: application/json' \
  -d '{"model":"meta/llama-3.1-8b-instruct",
       "messages":[{"role":"user","content":"..."}],
       "max_tokens":512,"stream":true}'

Time-to-first-token: 52 milliseconds. Fifty-two. That’s the useful number — the gap between hitting enter and seeing the response start to appear. It’s markedly better than any cloud API I’ve timed from the same LAN, and it’s the reason the endpoint feels like a local function call rather than an API.

The quality problem

Here’s where the story turns. The round-1 response at temperature=0.7 — the fastest, most confident one — was also, on a close read, not what I asked for. The prompt was “a Python one-liner that returns the nth Fibonacci number.” The response opened with:

def fibonacci(n):
    return (fibonacci_matrix([[1, 1], [1, 0]], n - 1)[0][0])

— followed by a note that “the fibonacci_matrix function is not shown here.” That’s not a one-liner, and fibonacci_matrix is a function the model invented. It doesn’t exist in the Python standard library or any common package. There’s nothing to import.

I re-ran at temperature=0 — greedy decode, the deterministic fallback you use when you suspect sampling noise — and the response got worse, not better:

def fibonacci(n): return (pow([[1, 1], [1, 0]], n - 1, mod=10**9 + 7))[0][0]

Every part of that line is wrong. Python’s built-in pow(x, y, z) takes three scalars for modular exponentiation; it does not accept a list-of-lists and has no defined matrix-exponentiation behavior. There is no mod= keyword argument — the modulus is the third positional parameter. The function raises TypeError on the first call. Any reader can verify this in a local Python REPL in five seconds.

This is the article’s hero moment: at temperature=0, the Llama 3.1 8B FP8 model on NIM produces confidently incorrect Python on a trivially-verifiable prompt. A human who knew the answer would write:

fib = lambda n: n if n < 2 else fib(n-1) + fib(n-2)

— twelve tokens, zero invented dependencies, verifiable in one line. The model “knows” Fibonacci well enough to produce a correct recursive definition in casual conversation; it chose not to, twice, at two different temperatures, when asked for a one-liner.

This isn’t a Spark defect. It’s an 8B-FP8 defect. The same Llama-family model at 70B and BF16, or Nemotron-3-Super at 123B and Q4 running locally on Ollama on the same machine, produced a correct one-liner on the first try (25.8 seconds wall-clock, about three times slower than NIM Llama 8B FP8). The speed/quality curve between small-and-fast and big-and-correct on this prompt is steep, and the marketing copy around 8B models doesn’t usually want to confront it. This blog can.

Does NIM_GPU_MEM_FRACTION matter?

The Spark variant ships with NIM_GPU_MEM_FRACTION=0.5 — the NIM claims half the Spark’s unified memory by default, leaving room for the bundled JupyterLab or concurrent workloads. For a single user running one NIM with nothing else claiming the GPU, that felt conservative. I restarted the container with NIM_GPU_MEM_FRACTION=0.8 and re-ran the four-round benchmark:

NIM_GPU_MEM_FRACTION	Mean tok/s	Min	Max
0.5 (default)	24.84	24.72	24.90
0.8	24.64	24.57	24.72

Zero difference (the 0.2 tok/s gap is noise — 0.8 looks marginally slower, well within the range of the 0.5 run). Single-request latency on an 8B FP8 model is not memory-bound. Raising NIM_GPU_MEM_FRACTION only buys headroom for concurrent requests — more KV-cache means more requests fit simultaneously — not faster answers for one caller. For a multi-tenant app expecting many concurrent inferences, the higher fraction earns its keep. For interactive use by one person, the default is fine. The experiment was cheap and the answer was informative: don’t tune what isn’t the bottleneck.

Verification — what success feels like on this machine

Running curl http://localhost:8000/v1/models and watching JSON come back is “working” in the boolean sense. “Working” in the sense that matters for a power user — is this a useful piece of infrastructure? — looks like three things.

First, time-to-first-token is low enough that the endpoint feels local in a way cloud APIs don’t. 52 milliseconds is inside the latency budget of a keystroke-responsive UI; I can wire this into an editor plugin and the plugin will feel instant. Wire it as the generation step of a RAG pipeline and the pipeline’s tail latency becomes retrieve-dominated, not generate-dominated. That’s a qualitative shift from “this is a slow API to batch against” to “this is a fast local function to call inline.”

Second, docker stats and nvidia-smi agree on one thing and disagree on another — and the disagreement is the Spark’s unified-memory fingerprint. Both show idle utilization between requests; both show near-zero GPU utilization when the model isn’t generating. What they can’t tell me is how much memory the model is using. nvidia-smi --query-gpu=memory.used returns [N/A]. docker stats reports container RSS at 2.49 GiB out of 121.7 GiB — but that’s Python, vLLM bindings, tokenizer, CUDA driver stubs; it is emphatically not the model weights, which live in unified memory mapped by the kernel. free -h on the host shows system memory pressure but doesn’t distinguish “the model” from page cache. On the Spark, the answer to “how much memory is my model using?” is “correlate free -h deltas across load/unload cycles, or instrument the NIM process directly.” The usual observability tools are blind here. Worth knowing before you wire dashboards.

Third, and the thing that matters most for the essay: I can run the benchmark, docker stop nim-llama31-8b, close the laptop lid, come back tomorrow, docker start nim-llama31-8b, and be back at 24.8 tok/s in about sixty seconds (no rebuild, just the JIT-reload path). The rig is a persistent endpoint, not a demo. That persistence is what unlocks everything downstream.

Tradeoffs and surprises

The Spark NIM is secretly a workbench, not just an inference endpoint. docker inspect on the image shows ExposedPorts for 6006/tcp (TensorBoard) and 8888/tcp (JupyterLab) in addition to 8000/tcp (the HTTP API). These are declared but not mapped unless you -p them explicitly, so the default launch just serves the API. But the image ships noticeably heavier than a bare inference container to carry those tools. The “Model NIM as workbench” framing is genuinely different from how NIM was originally pitched — worth noting if you expect a minimal serving-only image.

The playbook uses port 8080; the image’s environment uses 8000. The build.nvidia.com/spark/nim-llm Instructions tab shows -p 8080:8080 in its launch command. The container’s NIM_HTTP_API_PORT is 8000. Both work if you’re consistent — either keep the image default (map 8000:8000 on both sides, as I did) or override the env var to match the playbook’s port. The confusion surfaces when you follow the playbook and then run docker inspect to double-check; they disagree, and you’ll wonder which is canonical. Treat docker inspect as the source of truth — it reads what the image actually declares, not what someone wrote down.

Telemetry is off by default. NIM_TELEMETRY_MODE=0 is baked into this build. For a personal-power-user stack, that’s exactly what you want — no outbound heartbeats to NVIDIA, no metrics on your prompts leaving the box. It means you’ll need to plumb your own observability (Prometheus scrape of /metrics, OpenTelemetry, whatever you already run) for multi-model monitoring. The default is the privacy-preserving one; telemetry is opt-in, which is the right posture for this blog.

Completion-token counts were identical across A/B runs. Across both benchmark rounds (0.5 and 0.8 GPU-mem-fraction), the four rounds produced the exact same token counts both times: 253, 165, 219, 219. That’s not what you’d expect from temperature=0.7 sampling. Possibilities: the NIM wraps vLLM with a deterministic seed by default, or vLLM’s prefix-cache is strong enough to make short prompts effectively deterministic. Either way, the lesson is operational: if you want real variance for a benchmark, pass "seed": <random_int> in the request body per call. If you want reproducible benchmarks, the defaults are already doing the work.

Rotating NGC keys overwrites in place. I pasted one NGC key into ~/.nim/secrets.env, ran docker login, realized I needed a different scope, and overwrote the first key on disk before I had a backup. The first key is still valid on NVIDIA’s side but I have no local copy. The secrets.env pattern makes it easy to blow away without a prompt. If you’re rotating keys during setup, stash the previous one outside ~/.nim/ first.

What this unlocks

With one OpenAI-compatible endpoint running locally at steady throughput, three specific things are newly available this week.

A personal-corpus RAG assistant with no per-query cost. The generation step in most RAG pipelines is where the API bill lives; here it’s free. A Monday build: index an Obsidian vault and a pile of research PDFs via the next article’s NeMo Retriever embeddings, put them in pgvector, point a retriever at them, wire this NIM as the generator. Query latency becomes retrieve-dominated rather than generate-dominated — and retrieve is something I control end-to-end.

An overnight experiment agent. A Python script that posts prompts to http://localhost:8000/v1/chat/completions, asks the model to make a small code change, runs a test, measures a metric, keeps-or-rolls-back, and repeats. Because there’s no bill and no rate limit, the only constraint on iteration count is wall-clock. A hundred experiments in an hour is a reasonable pace on an 8B driver. That’s the Autoresearch-style agent I’ll build a few articles from now.

An always-on completion endpoint for editors and shell integrations. Register this URL in Continue (the VS Code AI-assistant plugin), in a shell AI-completion binding, in every local script that wants a cheap LLM call. None of them need to know about NVIDIA — they see an OpenAI-compatible URL. Swap in a bigger model later (a Qwen3-32B NIM exists for DGX Spark too, linked from the same playbook page) and nothing downstream changes.

The caveat for all three, learned honestly today: code prompts are not the safe default on this model. Use it for summarization, routing, extraction, conversational Q&A; reach for a bigger model or a stronger quantization when correctness-under-constraint matters.

Closing

The DGX Spark makes one quietly ironic thing easy that cloud never did: getting an inference endpoint close enough to your data and your editor that the LLM feels like a local function call. 108 seconds to warm, 52 milliseconds to first token, zero marginal cost per call. The Spark-specific NIM ships the entire bundle — image, engine, weights, bundled notebook environment — in one docker run. This is the cheapest local inference endpoint I’ve ever stood up, and the first of three apps will be built on top of it before the end of the month.

It’s also a loud reminder that small-and-fast has specific costs. A 24.8-tok/s stream is delightful to read; a hallucinated Python API is expensive to debug. The honest posture for readers of this foundation article is to treat the NIM as infrastructure, not arbiter — use it where latency and privacy matter, route around it where correctness-under-constraint matters, and let the next few articles bring in the memory layer, the rerank step, and the guardrails that turn a fast endpoint into a useful application.

Second Brain now: has a brain but no memory. LLM Wiki now: has a writer but no pages. Autoresearch now: has a driver but nothing to drive. Next up: NeMo Retriever embeddings on the Spark — vectorize once, reuse three times, and give each of the three apps the memory layer this endpoint doesn’t have.
